Westone AM Pro X30 Review: The Triple-Driver Stage Monitor That Still Sounds Great Off Stage

What Is the Westone AM Pro X30?

The AM Pro X30 is the flagship model in Westone's AM Pro X series, a lineup built specifically for performing musicians who need a monitor mix without losing touch with the stage around them. It sits above the AM Pro X10 and AM Pro X20 as the range-topping option, built around three balanced armature drivers (one each for bass, midrange, and treble) split by a three-way passive crossover. Every model in the AM Pro X series includes Westone's StageSense ambient filter, a passive design that blends a controlled amount of outside sound into the mix so performers can hear an audience, a bandmate, or a cue without pulling an earpiece out. It's priced at about $549 USD, positioning it as a premium option built for people who use their IEMs professionally rather than a casual audiophile purchase.

Build Quality and Design

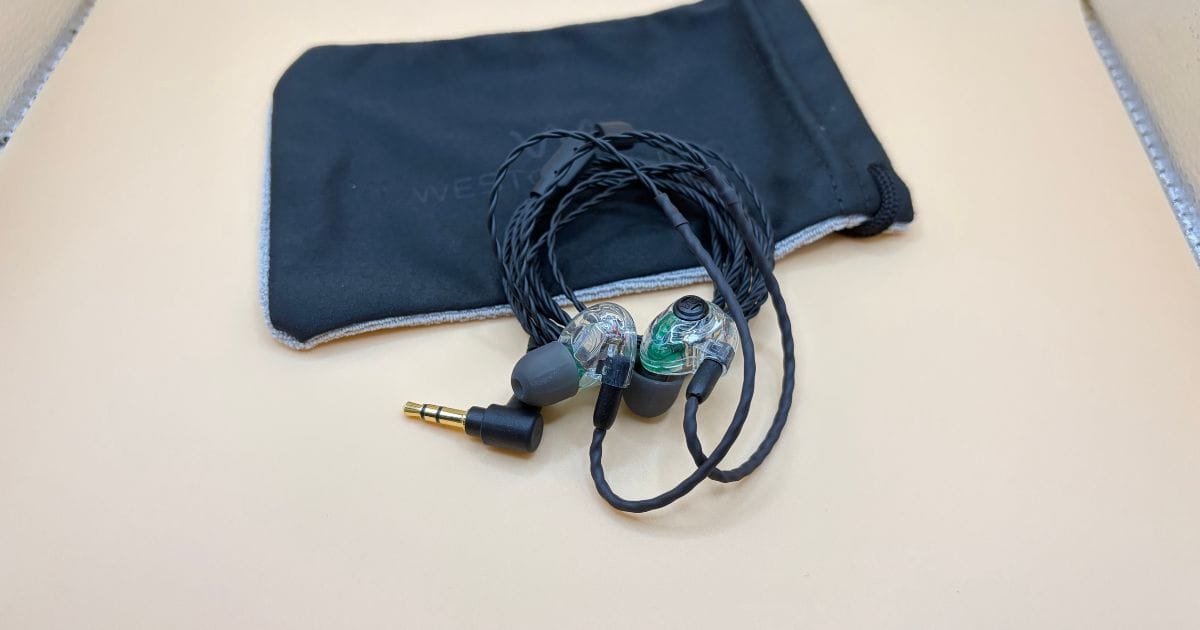

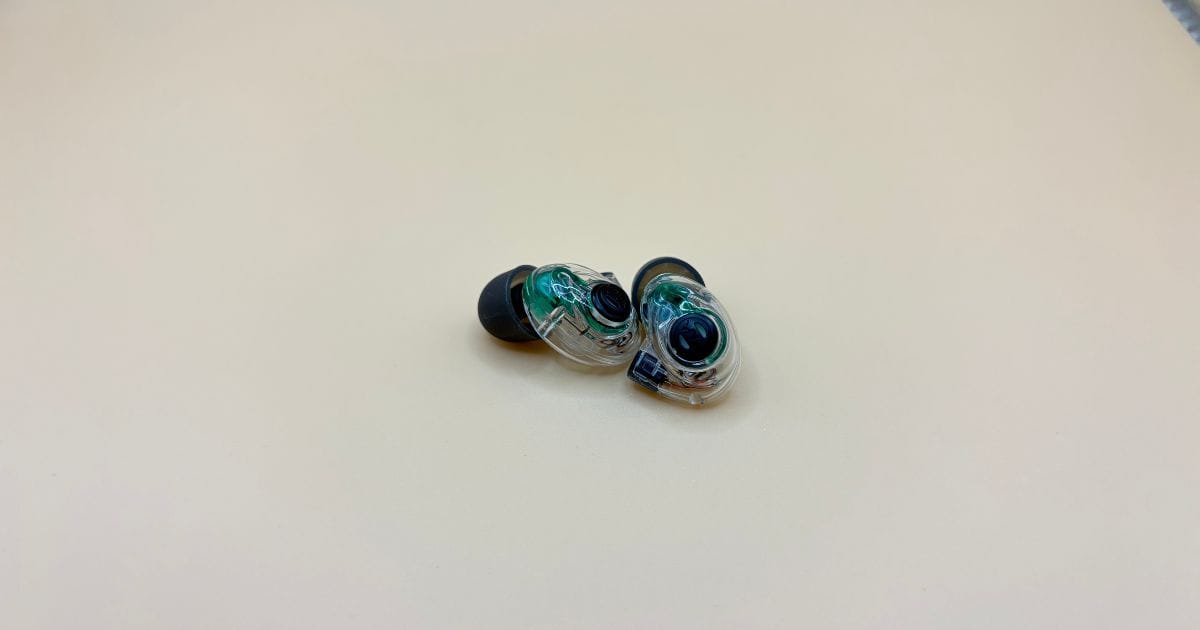

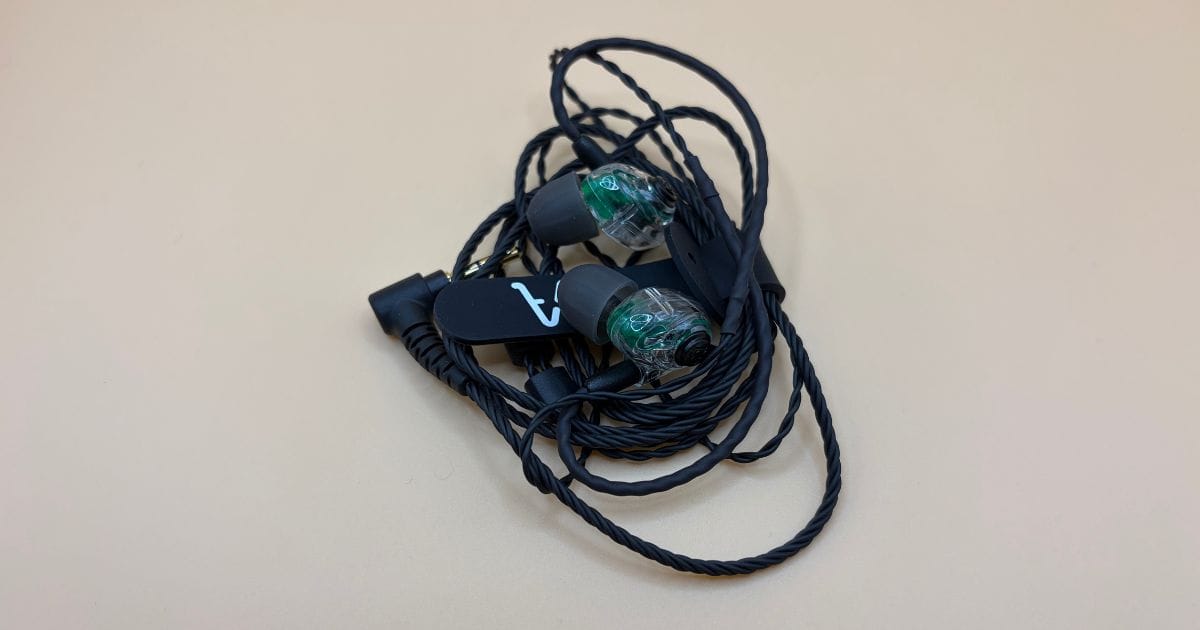

The X30 uses the same compact, low-profile shell shared with Westone's Mach series, formed from clear plastic that shows off the balanced armature drivers and internal wiring inside. The build quality is excellent, with clean tooling and no visible mold lines. The cable connects via Westone's T2 connector system, using a twisted SuperBAX cable made from silver-plated copper with a sweat-resistant, 360-degree rotatable connector designed to hold up to stage use.

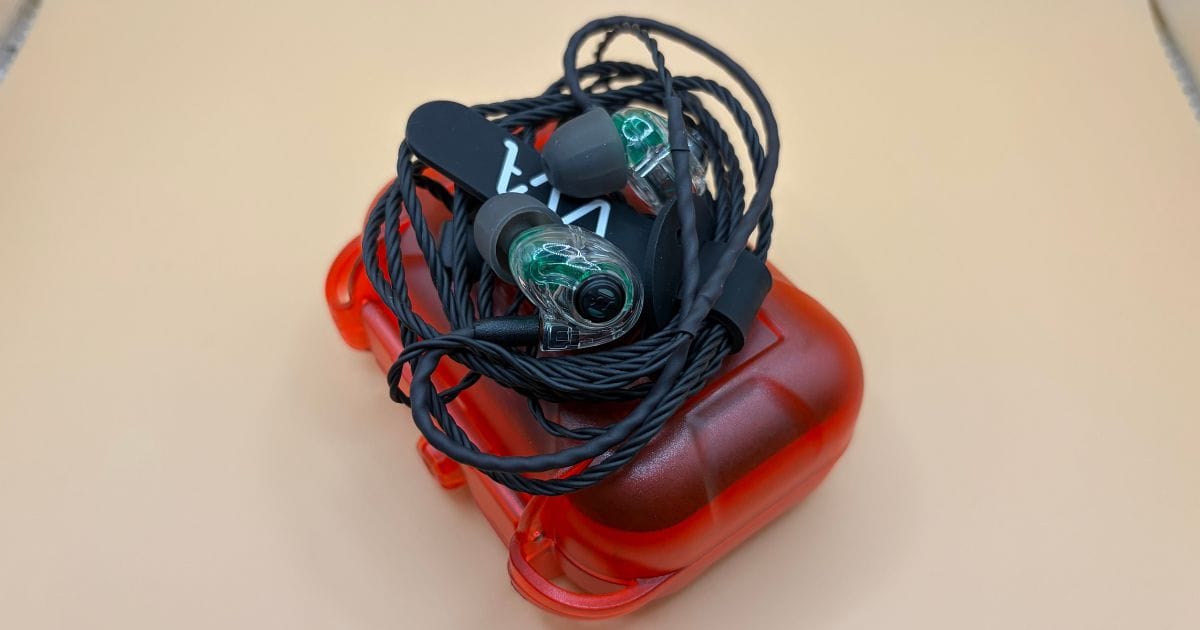

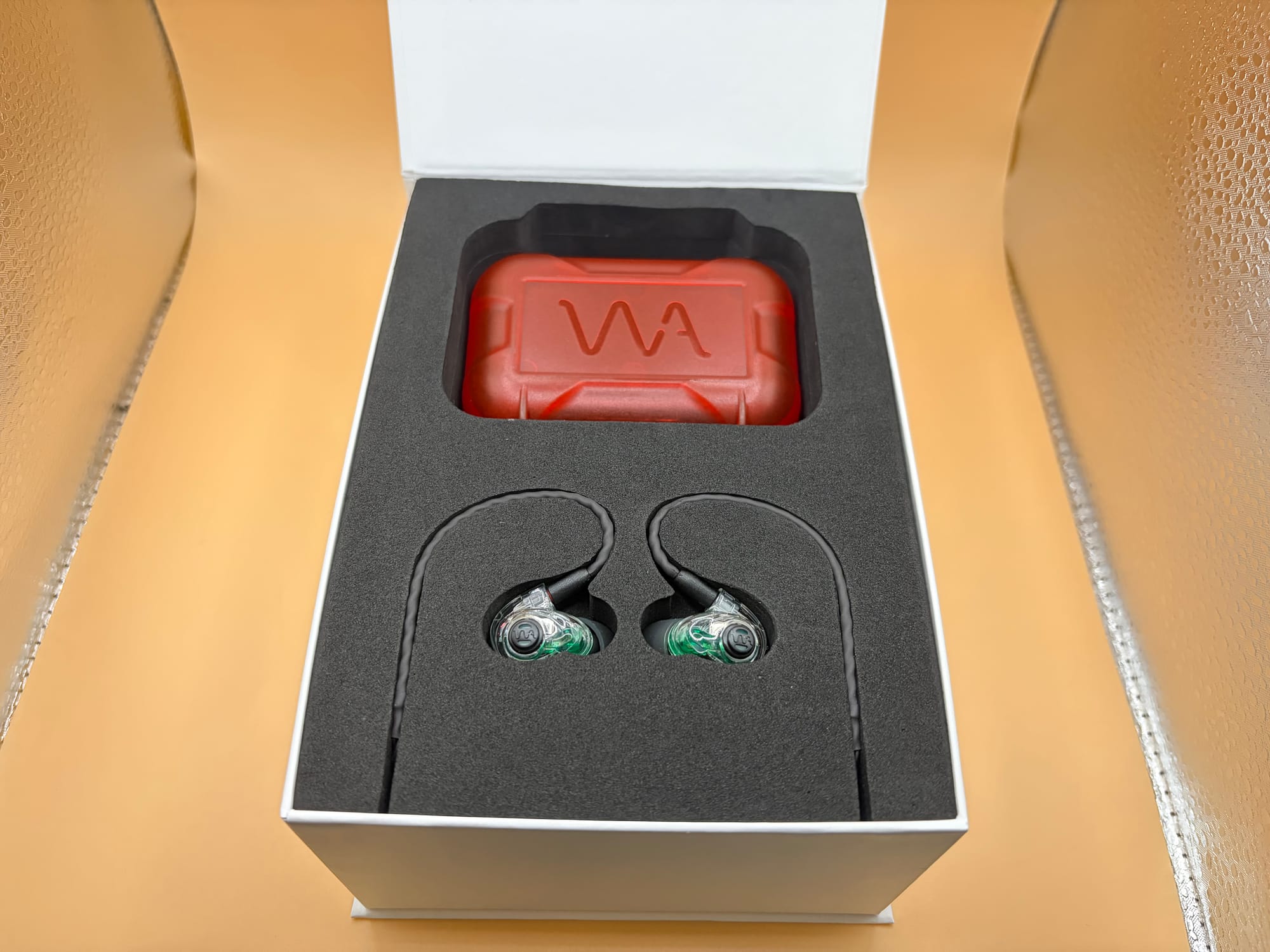

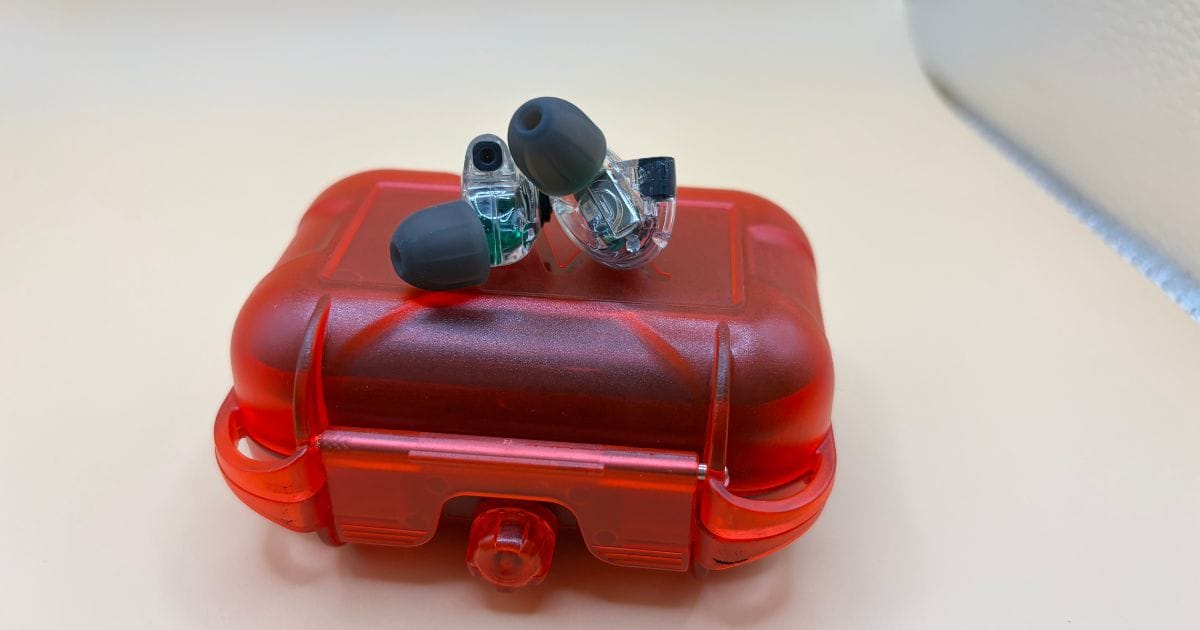

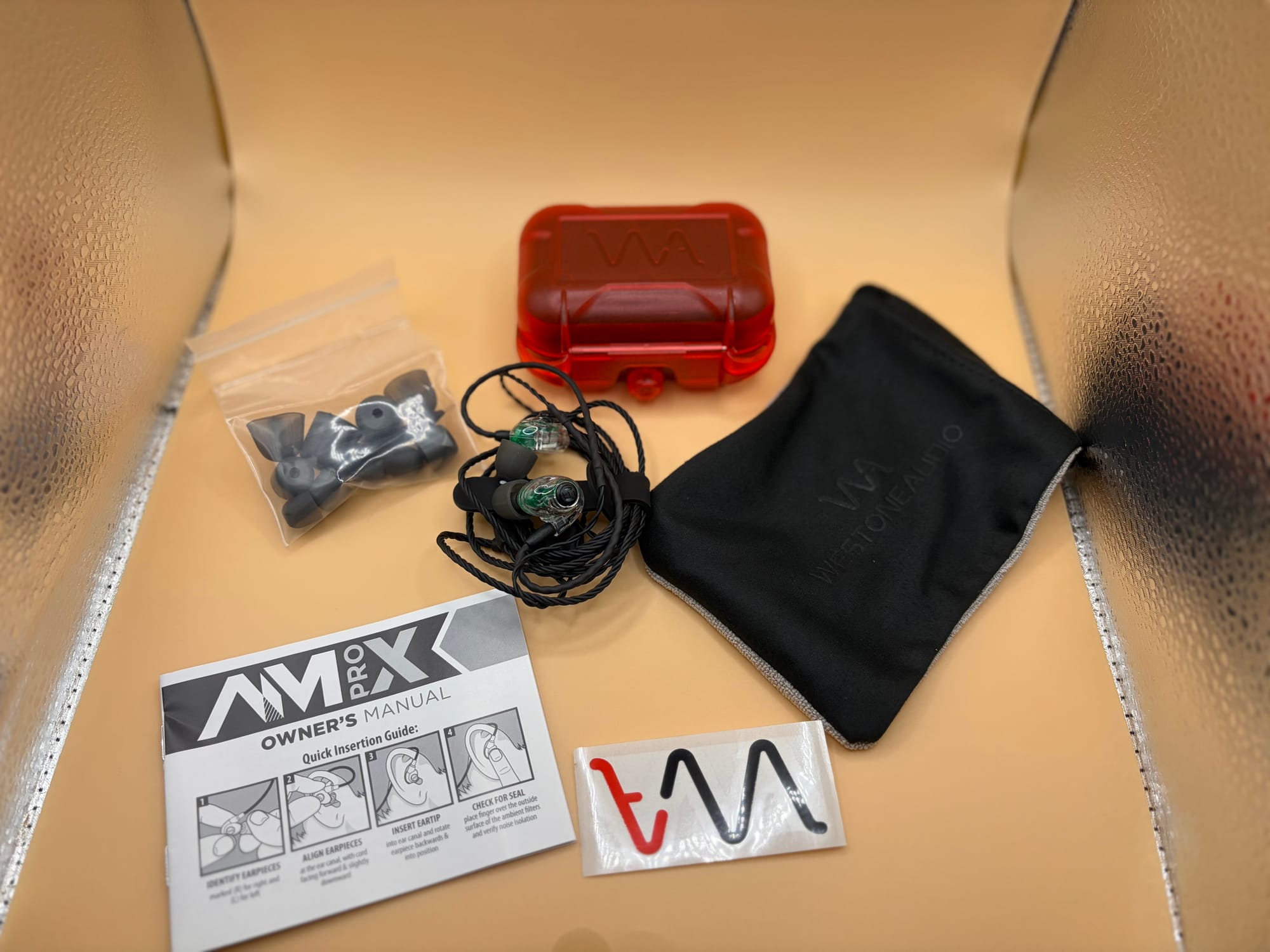

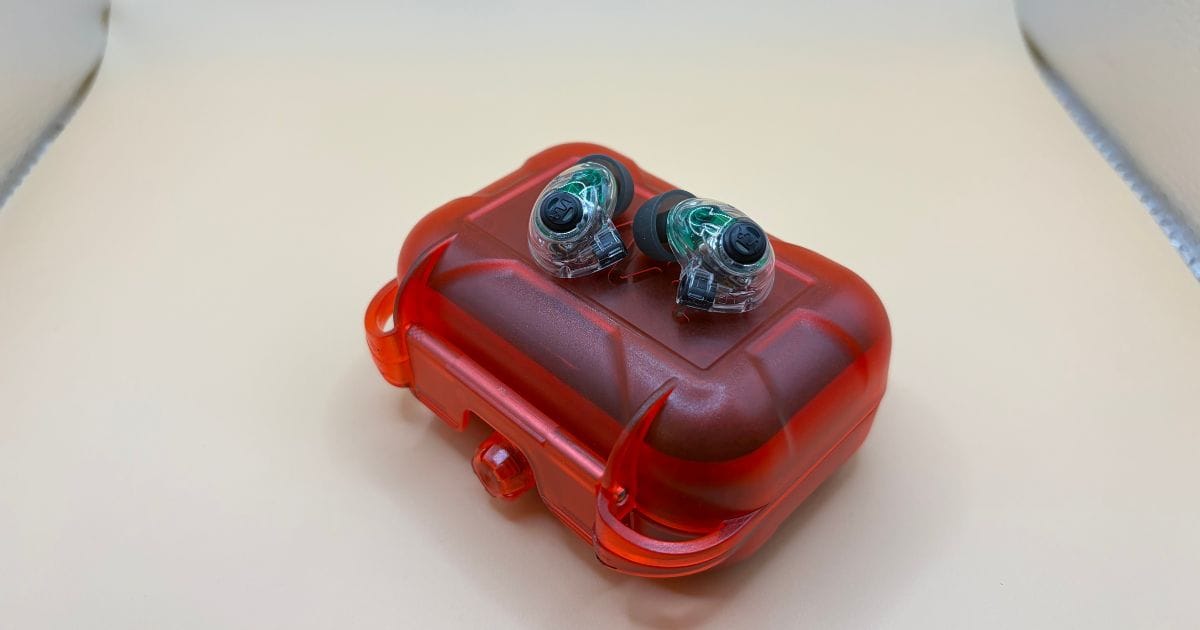

The accessory package is generous for the price. The box includes five pairs of silicone tips and five pairs of foam tips (XS through XL), a compact Monitor Vault carrying case, a cleaning tool, and a cloth storage bag, backed by a 2-year warranty on the shell and internal components. That kind of fit customization matters for a stage monitor, since a bad seal doesn't just hurt sound quality; it can also cause the earpiece to work loose during a set.

Sound Quality

Overall Sound: The AM Pro X30 delivers a balanced, "normal" sound signature that leans toward accuracy over excitement, which is exactly what you'd want from a monitor built for critical, professional use. Detail retrieval is strong for the price, and separation between individual notes stands out even compared to some pricier IEMs. While the X30's main focus is for professional performers, they sounded quite good during normal listening and could be used for both.

Bass: Bass is tight, controlled, and well-defined, a hallmark of a properly executed balanced armature setup. It doesn't dig especially deep, with sub-bass response rolling off earlier than dynamic-driver fans might expect, but what's there is precise rather than loose or boomy. For stage use, that tightness matters more than raw sub-bass extension, since it keeps low end from muddying a busy monitor mix. When listening to music casually, the bass doesn't feel lacking, but it is definitely on the more withdrawn side than many V-shaped audiophile headphones.

Mids: The midrange is where the X30 shines. Vocals and midrange instruments come through clean and forward, with the added third driver over the X20 specifically dedicated to boosting clarity in this range. This makes the X30 a strong pick for vocalists, guitarists, and anyone who needs to hear themselves clearly over a full band mix. Westone has always had a particularly excellent midrange tuning with their monitors, and the X30 is no different.

Treble: Treble is smooth and detailed without becoming harsh or fatiguing over a long set. It extends cleanly and adds air to the mix without drawing attention to itself, which is the right call for a monitor meant to be worn for hours at a time.

Timbre, Soundstage, and Imaging: Timbre is natural and accurate rather than colored, matching the X30's overall "monitor first" tuning philosophy. Imaging is very strong, with instruments and vocals placed precisely within the soundstage, which helps performers track their position in a mix during a live show. Soundstage width is respectable for an in-ear design, though it prioritizes precision over the expansive, airy feel some audiophile-tuned IEMs chase.

Comfort and Isolation

Comfort is one of the X30's biggest wins. Between all of the Westone products I've tested, comfort has always been industry-leading. The shell is compact and lightweight, built to be worn comfortably through hours-long rehearsals and shows without fatigue, and the dual set of foam and silicone tips means most ear shapes can dial in a secure, comfortable fit.

Isolation is more nuanced here because of the StageSense ambient filter. This is a passive, semi-open design meant to let a controlled amount of outside sound in, so performers aren't fully cut off from the room. That's a feature for musicians who need to hear an audience or a cue from a bandmate, but it does mean the X30 isolates less than a fully sealed IEM at the same price. If your priority is blocking out a loud stage or a noisy commute completely, Westone's own sealed Mach series is the better fit. If you need to stay connected to your environment while still getting a clear monitor mix, the ambient filter is exactly the point.

How It Compares

Vs. Westone AM Pro X20: The X20 is the AM Pro X30's direct sibling and the most natural comparison point, since it's built on the exact same ambient filter concept in a smaller package. The X20 uses two balanced armature drivers instead of three, and the difference shows up mainly in the midrange: the X30 adds a dedicated driver specifically for that band, giving vocals more body and separation than the X20's slightly leaner, brighter presentation. The X20 also has a lower impedance (27Ω vs. 56Ω) and higher sensitivity, making it a touch easier to drive off a phone or basic interface. If your budget tops out closer to $300 to $400 and you don't need the added midrange richness, the X20 covers most of the same ground for less money. If you want the fullest, most balanced version of Westone's ambient monitor concept, the X30 is worth the jump.

Vs. Shure SE535: The SE535 is a similarly priced, similarly positioned triple-driver stage monitor, but it's a fully sealed design with no ambient pass-through. The Shure isolates better in loud environments and has a slightly warmer, more relaxed low end, while the X30 pulls ahead on midrange clarity and imaging precision. The choice mostly comes down to whether you need to stay aware of the room, which is where the X30's ambient filter becomes the deciding factor.

Vs. Westone Mach 30: The Mach 30 shares the X30's shell and driver count but drops the ambient filter entirely in favor of a fully sealed design aimed at audiophiles and sound engineers rather than performers. It isolates significantly better and is tuned with a bit more low-end warmth for casual listening. The X30 is the right call for anyone performing on stage who needs to hear around them; the Mach 30 makes more sense if your use case is studio monitoring, personal listening, or maximum isolation onstage.

Final Verdict

The Westone AM Pro X30 is a purpose-built tool that happens to sound excellent as a result of that focus. It won't be the most exciting or bass-heavy IEM you'll try, and its ambient filter means it isn't the best choice if total isolation is your priority. But for musicians, engineers, and anyone who wants a monitor with precise imaging, a clean midrange, and the ability to stay connected to the room, the X30 delivers exactly what it promises at a price that's fair for what you get. With it's price at over $500 it wont suit people who only use their IEMs for home-listening, but if you are a musician who needs a technical monitor for use on stage and want a pair of earbuds you can use off stage to sound great, the AM Pro X30 is just that.

Technical Specifications

• Configuration: 3 balanced armature drivers with 3-way passive crossover
• Ambient Technology: Passive StageSense/Ambient Patented Technology filter
• Impedance: 56Ω @ 1kHz
• Sensitivity: 124 dB @ 1mW
• Frequency Response: 20 Hz – 18 kHz
• Cable: Detachable T2 connector system with SuperBAX silver-plated copper twisted cable, 3.5mm jack
• Shell Material: Clear plastic housing with visible internal components
• Included Tips: 5 pairs silicone tips and 5 pairs foam tips (XS, S, M, L, XL)
• Included Accessories: Monitor Vault carrying case, cleaning tool, cloth storage bag
• Warranty: 2-year warranty on shell and internal components (90 days on accessories)
• Price: $479 USD (varies slightly by region and retailer)
